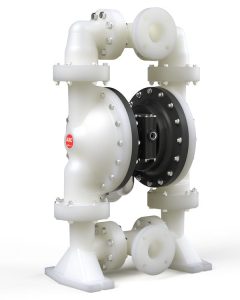

3” EXP Non-Metallic Air Operated Diaphragm Pump

PD-30P

Ratio 1:1
Maximum GPM (LPM): 285 GPM (1079 LPM)
Air Inlet: 3/4 – 14 N.P.T.
Fluid Inlet/Outlet: 3” DIN (8-Bolt) Flange or
3” ANSI (4-Bolt) Flange
Maximum Operating Pressure PSI (bar): 120 (8.3)
Suspended Solids Maximum DIA IN. (mm): 3/8″ (9.5)
Weight – LBS. (Kg): 170 lbs (77.11 kg) Polypropylene
242 lbs (109.59 kg)PVDF
Maximum Dry Suction Lift: 20.5 ft. (6.3m)
Sound Level: 70 PSI
60 Cycles/Min.
85.3 db(A)
Muffler Included: 67389

OPERATION & MAINTENANCE MANUALS
OPERATOR’S MANUAL PX30P-XXX-XXX-AXXX

SALES & ENGINEERING DATA SHEETS
SALES AND ENGINEERING DATA SHEET PX30P-XXX-XXX-AXXX

3″ Non-Metallic Diaphragm Pump Brochure
EXPert Series Diaphragm Pump Catalog
Long-Life PTFE Diaphragm Flyer

PX30

X -

X

X

X -

X

X

X -

C

Model Series
PD30	Standard Pump
PE30	Electronic Interface Accessible Pump

Center Section
R	Polypropylene

Connection
D	3" ANSI 4-hole Flange
F	3" DIN 8-hole Flange

Wetted Parts
K	PVDF
P	Polypropylene

Hardware
S	Stainless Steel

Seat Material
K	PVDF
P	Polypropylene

Ball Material
A	Santoprene
C	Hytrel
G	Buna-N
T	PTFE
V	Viton

Diaphragm Material
A	Santoprene
C	Hytrel
G	Buna-N
L	Long-life PTFE
T	PTFE/ Santoprene

Specialty Code
	Fluid control options for pump with electronic inferface (PE30 model).
