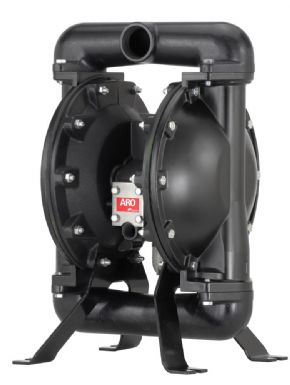

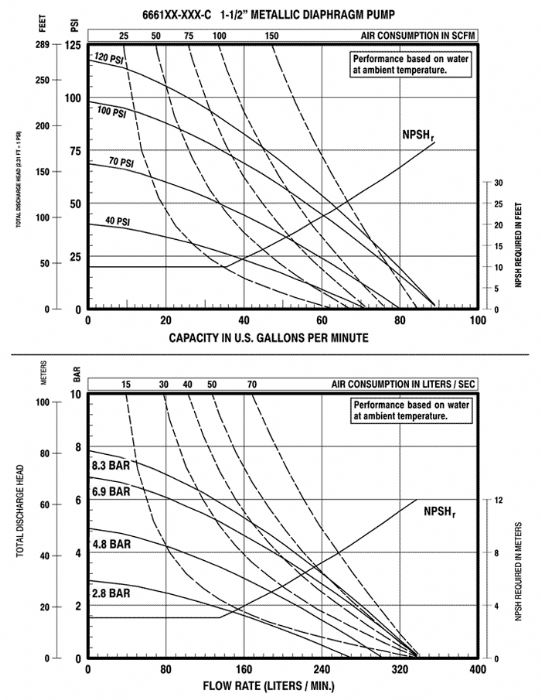

1-1/2″ METALLIC PRO PERFORMANCE SPECIFICATIONS

66615
  • Ratio 1:1
  • Maximum GPM (LPM): 90 (340.7)
  • Displacement Gallons Per Cycle (Liters): 0.64 (2.42)
  • Air Inlet: (Female) 1/2" - 14 N.P.T.F. - 1
  • Fluid Inlet: 1-1/2" - N.P.T.F.
    1-1/2" - BSP parallel)
  • Fluid Outlet: 1-1/2" - N.P.T.F.
    1-1/2" - BSP parallel)
  • Maximum Operating Pressure PSI (bar): 120 (8.3)
  • Suspended Solids Maximum DIA IN. (mm): 1/4" (6.4)
  • Weight - LBS. (Kg): 666150-X-C (aluminum) 51.5 (23.4)
    666151-X-C (stainless steel)84.5 (38.3)
    666152-X-C (cast iron) 79.5 (36.1)

    Note: Add 23-lbs (10.4-kg) for cast iron air motor section
  • Maximum Dry Suction Lift: 19 Ft. (5.8)

OPERATOR’S MANUAL
1-1/2″ Metallic Operator’s Manual

PUMP SPECIFICATIONS
1-1/2″ Metallic Pump Specifications

GENERAL INFORMATION MANUAL
General Information Manual

6661XX          -XXX        -C

Center Body Material, Threads
5Aluminum, N.P.T.F.
6Cast Iron, N.P.T.F.
7Aluminum, BSP
8Cast Iron, BSP
Fluid Cap / Manifold Material, Hardware
(Steel Hardware)
0Aluminum
1Stainless Steel
2Cast Iron
(Stainless Steel Hardware)
AAluminum
BStainless Steel
CCast Iron
Seat Material
1Aluminum
2316 Stainless Steel
3Polypropylene
4Kynar PVDF
5Carbon Steel
8440 Stainless Steel
Ball Material
1Neoprene
2Nitrile
3Viton
4PTFE
5E.P.R.
6Acetal
8Polyurethane
AStainless Steel
CHytrel
ESantoprene
Diaphragm Material
1Neoprene
2Nitrile
3Viton
4PTFE / Santoprene
5E.P.R.
9Hytrel
BSantoprene

66615
