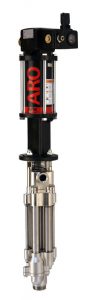

ARO AF0402MXXXXXX

AF0402MXXXXXX

BROCHURE

AF0402_4B Product Page

DATA SHEET

AFX 4 Ball Manual AF0402MXXXXXX

Model	Plunger Material	Upper Packings	Lower Packings	Lower Pump Model	Pump Service Kit	Ball Valve Regulator	Lower Pump Model Material
AF0402M11HF48	17-4 Stainless Steel Ceramic Coated	UHMW-PE/Leather Staggered	UHMW-PE	67200-F4B	637317-F4B	No	300 Series/ CF8M Stainless Steel
AF0402M11RS48	17-4 Stainless Steel Ceramic Coated	PTFE/UHMW-PE Staggered	Virgin PTFE	67200-R4B	637317-R4B	No	300 Series/ CF8M Stainless Steel
AF0402M11KS48	17-4 Stainless Steel Ceramic Coated	Glass Filled PTFE	Virgin PTFE	67200-74B	637317-74B	No	300 Series/ CF8M Stainless Steel
AF0402M11FF48	17-4 Stainless Steel Ceramic Coated	UHMW-PE	UHMW-PE	67200-C4B	637317-C4B	No	300 Series/ CF8M Stainless Steel
AF0402M11HF48-1	17-4 Stainless Steel Ceramic Coated	UHMW-PE/Leather Staggered	UHMW-PE	67200-F4B	637317-F4B	Yes	300 Series/ CF8M Stainless Steel
AF0402M11RS48-1	17-4 Stainless Steel Ceramic Coated	PTFE/UHMW-PE Staggered	Virgin PTFE	67200-R4B	637317-R4B	Yes	300 Series/ CF8M Stainless Steel
AF0402M11KS48-1	17-4 Stainless Steel Ceramic Coated	Glass Filled PTFE	Virgin PTFE	67200-74B	637317-74B	Yes	300 Series/ CF8M Stainless Steel
AF0402M11FF48-1	17-4 Stainless Steel Ceramic Coated	UHMW-PE	UHMW-PE	67200-C4B	637317-C4B	Yes	300 Series/ CF8M Stainless Steel
