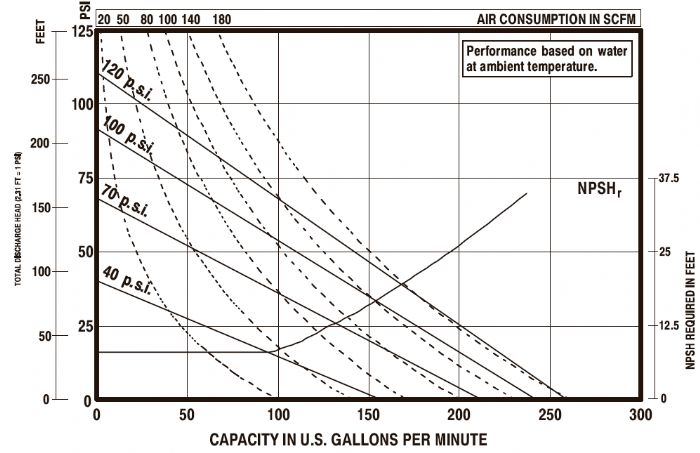

3″ METALLIC EXP PERFORMANCE SPECIFICATIONS

PX-30
  • Ratio 1:1
  • Maximum GPM (LPM): 275 (1.041) flooded suction
  • Displacement Gallons Per Cycle (Liters): 2.8 (10.6)
  • Air Inlet: 3/4" - 14 N.P.T.
  • Fluid Inlet: 3" - N.P.T.F.-1
    3" - BSP
    3" - A.N.S.I. / DIN Flange *SS only
  • Fluid Outlet: 3" - N.P.T.F.-1
    3" - BSP
    3" - A.N.S.I. / DIN Flange *SS only
  • Maximum Operating Pressure PSI (bar): 120 (8.3)
  • Suspended Solids Maximum DIA IN. (mm): 3/8" (9.5)
  • Weight - LBS. (Kg): 129.5 (58.8) Aluminum, Aluminum Center Body
    216.6 (98.2) Cast Iron, Alum Center Body
    242.3 (109.9) Cast Iron, Poly Center Body
    228.8 (103.8) Stainless, Alum Center Body
    253.3 (114.9) Stainless, Poly Center Body
    268.8 (122) Stainless, Stainless Center Body
    249.8 (113.3) Hastelloy, Alum Center Body
    289.8 (131.5) Hastelloy, Stainless Center Body
  • Maximum Dry Suction Lift: 14 Ft. (4.2) Elastomer fitted

OPERATION & MAINTENANCE MANUALS
PD30A & PD30S O, I & M Manual
PD30R O, I & M Manual

SALES & ENGINEERING DATA SHEETS
PD30A & PD30S Data Sheet
PD30R Data Sheet

CHEMICAL COMPATIBILITY GUIDE
CHEMICAL COMPATIBILITY

EXP DIAPHRAGM PUMP SPECIFICATION
EXP DIAPHRAGM PUMP SPEC.

PX30X     -XXX     -XXX     -C
Model Series
PD30Standard Pump
PE30Electronic Interface Accessible Pump
Center Section
AAluminum
RPolypropylene w/SS Air Caps
SStainless Steel
Connection
ANPTF Thread
BBSP Thread
D

ANSI 4-hole Flange

 F  DIN 8- hole  Flange
Wetted Parts
AAluminum¹
CCast Iron
HHastelloy-C¹
SStainless Steel
Hardware
PPlated Steel
SStainless Steel
Seat Material
ASantoprene
CHytrel
ECarbon Steel
FAluminum
GNitrile
H440 Stainless Steel (Hard)
KPVDF
LHastelloy
S316 Stainless Steel
Ball Material
ASantoprene
CHytrel
GNitrile
TPTFE
VViton
Diaphragm Material
ASantoprene
CHytrel
GNitrile
TPTFE/
Santoprene
VViton
Specialty Code
C
PX-30
